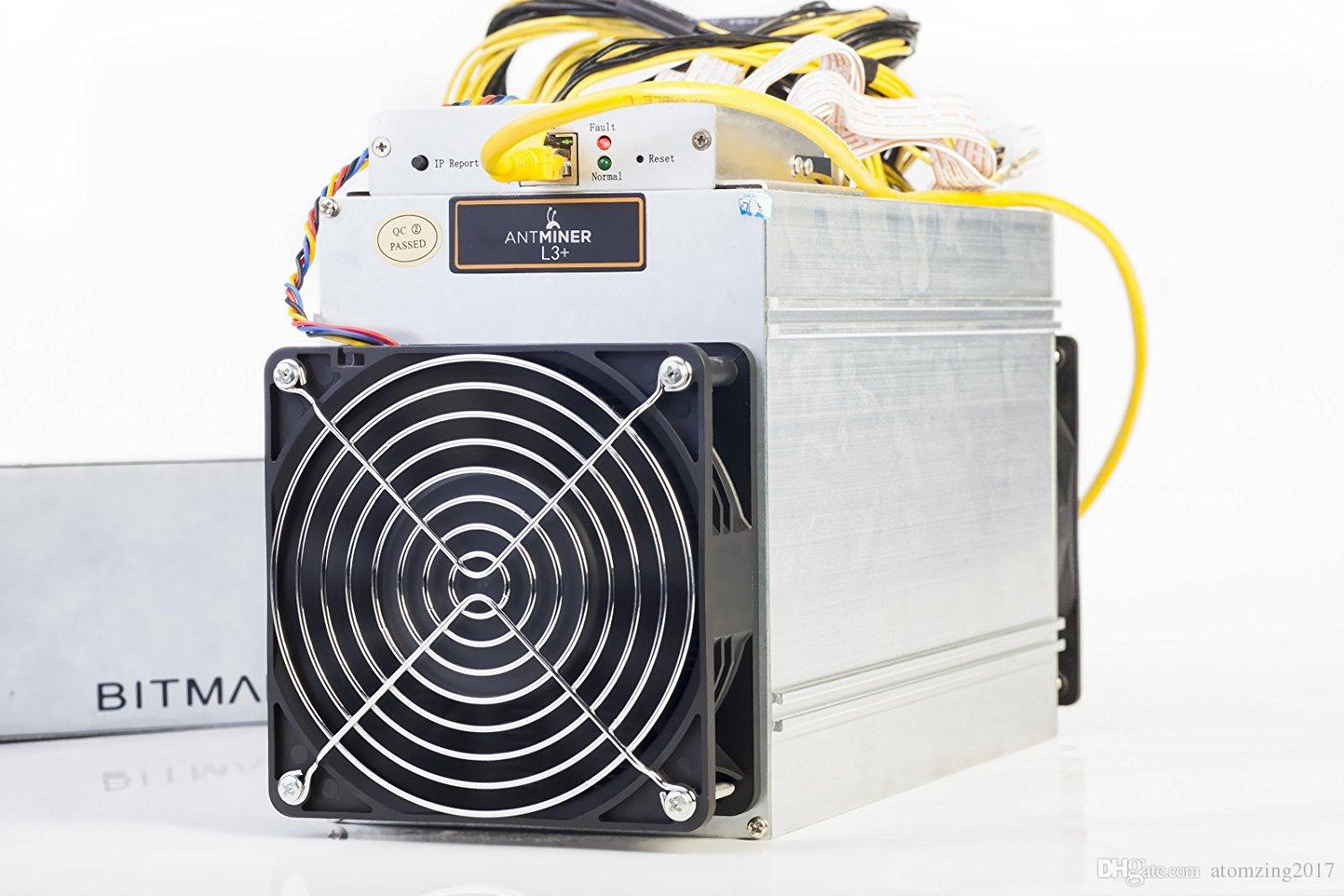

Antminer L3+, 504MH/s
World's Most Powerful Litecoin Miner
You can buy Antminer L3+ here.
Specifications:
- Hash Rate: 504MH/s. A variation of +/- 5% is expected.
- Power Consumption: 800W +10% (at the wall, with Bitmain's APW3 PSU, 93% efficiency, 25°C ambient temperature)
- Power Efficiency: 1.6J/MH +10% (at the wall, with Bitmain's APW3 PSU, 93% efficiency, 25°C ambient temperature)
- DC Voltage: Input11.60 ~ 13.00V
- Chip Type: BM1485 ASIC chip
- Chip quantity per unit: 288 chips on four hashing boards, 72 chips on one hashing board
- Dimensions: 352mm (l) x 130mm (w) x 187.5mm (h)
- Operating temperature: 0°C - 40°C
- Network connection: Ethernet

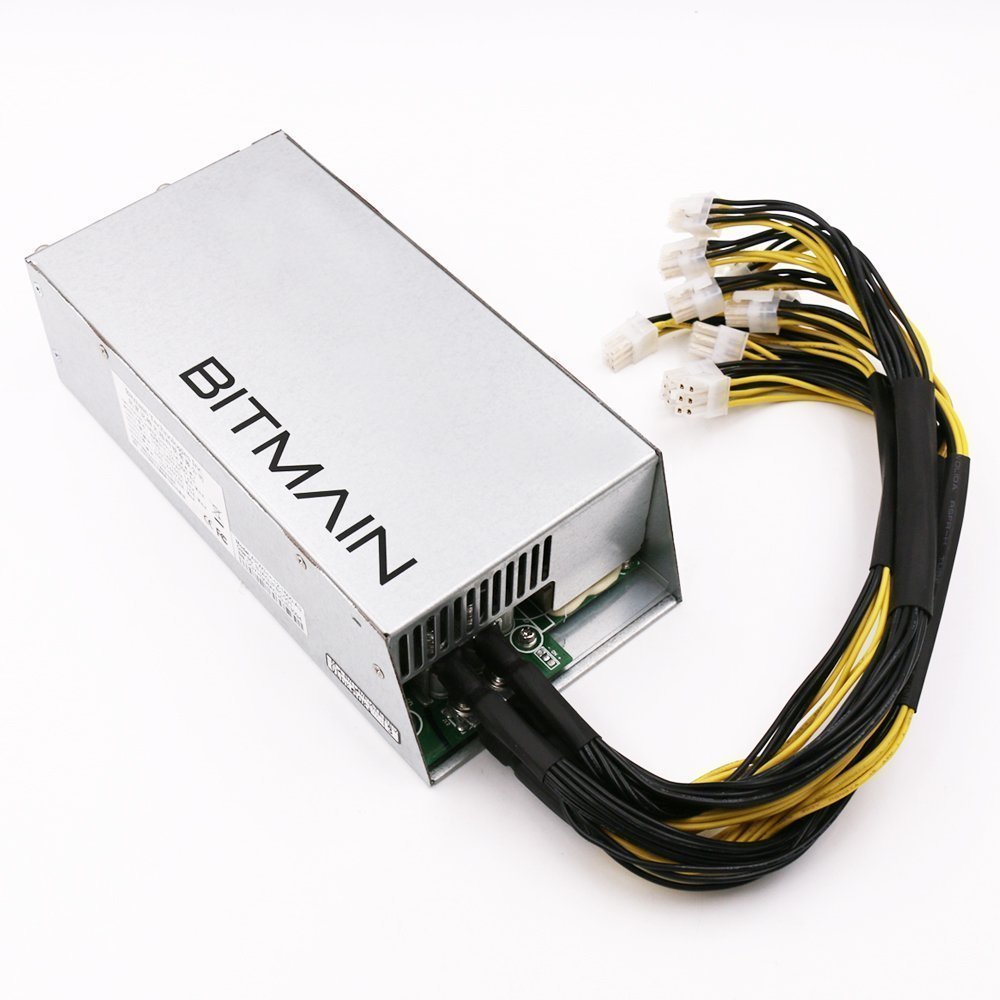

Recommended PSU: APW3++
Specifications
Output |
DC Voltage |
12.15V |
|
Rated Current |
133A |
|
|
Rated Current |
100A |
|
|
Rated Power |
1600W |
|
|
Rated Power |
1200W |
|
|
Ripple & Noise |
<1% |
|
|
Voltage Regulation |
<2% |
|
|
Source Regulation |
<1% |
|
|
Load Regulation |
<1% |
|
|
Setup, Rise Time |
<2S |
|
|
Power off Protection Trip Time |
>9mS |
|
|
Interface Type |
5 pairs of 6 pin PCI-E connectors (i.e. 10 connectors) |
|
|
Noise Level |
<43DB |
|
|
Input |
Voltage Range |
100-240V AC |
|
Starting Voltage |
95-105V AC |
|
|
Frequency Range |
47-63Hz |
|
|
Power Factor |
>0.95 (full load) |
|
|
Leakage Current |
<1.5mA (220V 50Hz) |
|
|
Protection |
Low-voltage Input |
80-89V AC |
|
Output Short Circuit |
Yes |
|
|
Output Overcurrent |
134-185A max. |
|
|
Overheat Protection |
Yes |
|
|
Environment Conditions |
Operating Temperature |
-20°C - 50°C |
|
Operating Humidity |
20% - 90% relative humidity (non-condensing) |
|
|
Structure |
Dimensions |
220mm*108mm*62mm |
|
Cooling |
Fan |
Forced-air cooling |
